Pressure Control Unit
ICF-CTRL- PRE
Overview
The ICF-CTRL-PRE Pressure Control Unit is an advanced educational trainer designed for hands-on learning and experimentation in the field of industrial automation and control, specifically for engineering college students. It provides a complete platform to study and implement various control strategies for pneumatic systems using both open-loop and closed-loop configurations. Students can experiment with P, PI, PD, and PID control modes and gain practical insights into process control engineering.
Product Details
Specification

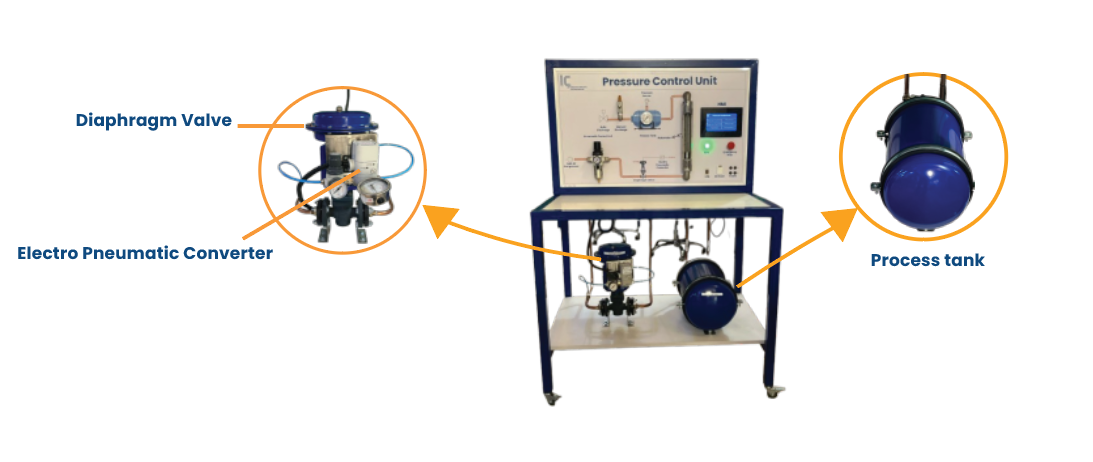

- Steel tank of 20 liters.
- Safety valve.
- Pneumatic control valve.
- Electronic pressure transmitter with range of 0 to 6 bar and 4 to 20 mA output signal.

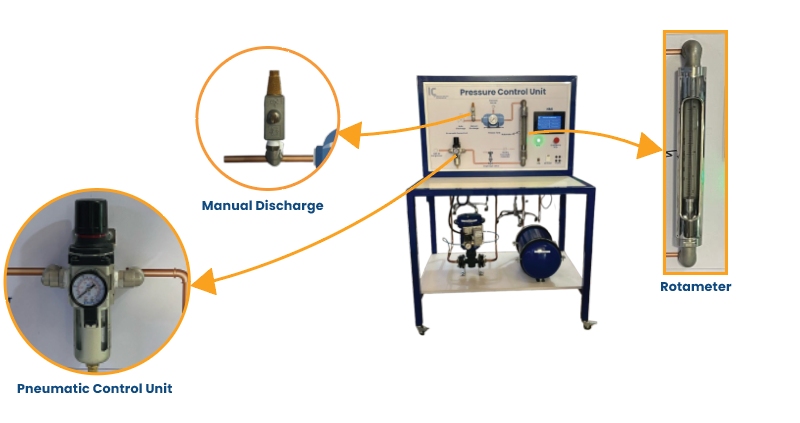

- Flowmeter of stainless steel and glass for measuring the f low rate of air, range of 2 to 20 m^3 /h.
- Electro-pneumatic converter, 4 to 20 mA / 0.2 to 1 bar.
- Thermometer with range of 0 to 60 °C.
- Bourdon gauge of stainless steel with range of 0 to 6 bar.
- Monitoring Based Software are available.
- SD card for data logging.
- HMI will be for digital monitor and data storage.
