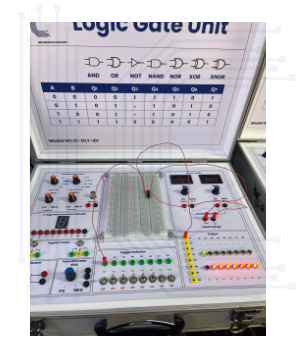

Digital Logic Trainer (Version 2)
IC-DLT-I01
Overview

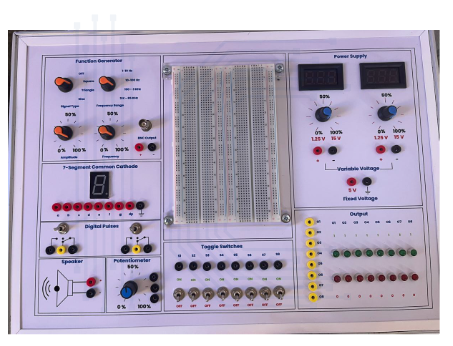

The IC-DLT-I01 is an advanced educational trainer designed to provide both students and professionals with essential hands-on experience in digital and analog electronics. It allows the construction and testing of circuits ranging from basic series/parallel circuits to complex multistage microcomputer systems, using the latest industrial technologies. The system offers a reliable, versatile, and comprehensive platform suitable for academic learning, research, and industrial training.
Product Details
Specification
- Designed for digital and analog circuit applications.
- Equipped with 8 high/low buffered logic indicators.
- Includes 8 selectable logic switches.

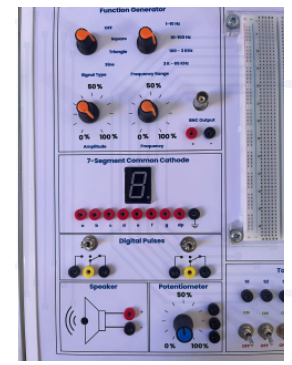

- Integrated function generator with continuously variable sine, square, and triangle waveforms, plus TTL pulses.

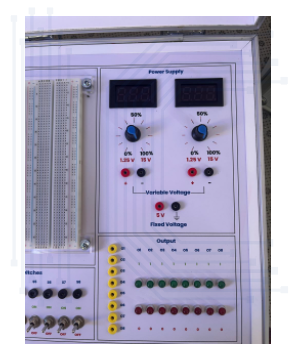

- Triple-output power supply: -Fixed +5 VDC -Two variable outputs: ±1.3 to ±15 VDC
- Two digital pulsers for external signal input.
- Audio experimentation speaker.
- Movable breadboard plate, with options for additional plates.
