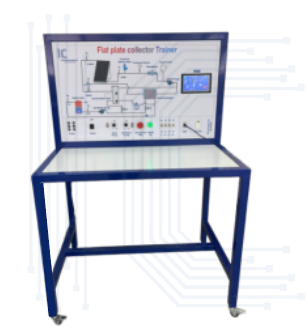

Flat plate Collector
Code: ICF-STH-FPC-I02
Description
The ICF-STH-FP-I02 Is An Educational System Designed To Teach Students About Solar Thermal Energy. This Trainer Allows For Hands-on Experimentation And Learning About The Fundamental Principles Of Thermal Energy, Its Collection, Storage, And Supply. The System Provides Students With A Practical Understanding Of Solar Technology And Energy Efficiency, Enabling Them To Explore Various Parameters That Affect Thermal Energy Systems.
Specifications
- Accumulator Tank - Volume: 150 liters. - Dimensions: 50 cm (diameter) x 150 cm (hei ght)
- Pump - Flow Rate: 900 liters per minute (LPM). - Power: 200 W.
- Buffer Tank - Volume: 40 liters. - Radius: 35 cm.
- Heat Exchanger: Type: 4-bore heat exchanger.
- Pressure Rating: 4 bar.
- Plate Dimensions: Area: 2 m².
- Dimensions: • Size: 320 cm (width) x 200 cm (depth) x 230 cm (height).
- Irradiance - Value: 2000 W/m². - Lux: 4 lux = 1000 watts each.
- Temperature Sensor - Range: 0°C to 200°C. - Accuracy: ±0.1°C

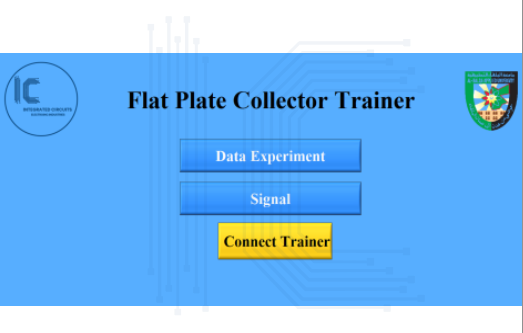

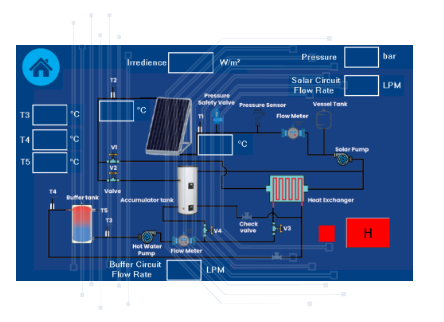

- HMI:7 inch.
